Steel & Grit

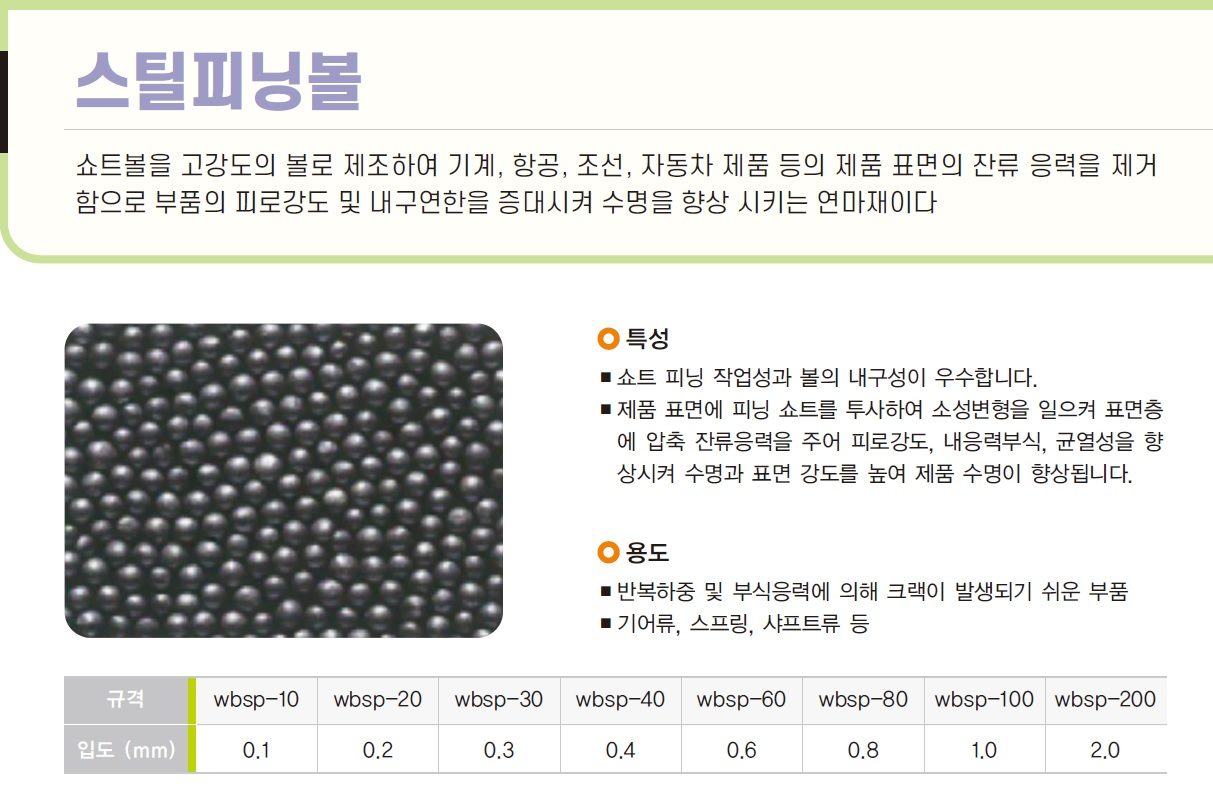

Steel Peening Ball
High-strength balls made from shot that remove residual surface stress on machinery, aerospace, marine and automotive components — increasing fatigue strength and durability, and extending service life.
Features
- Excellent shot peening workability and ball durability
- Peening shot induces plastic deformation that imparts compressive residual stress in the surface layer, improving fatigue strength, stress corrosion resistance and crack resistance while raising surface hardness and service life
Applications
- Components prone to cracking under cyclic loading and corrosion stress
- Gears, springs, shafts and similar parts
Specification
Grades
Particle Size by Grade
| Grade | Size (mm) |
|---|---|
| wbsp-10 | 0.1 |
| wbsp-20 | 0.2 |
| wbsp-30 | 0.3 |
| wbsp-40 | 0.4 |
| wbsp-60 | 0.6 |
| wbsp-80 | 0.8 |
| wbsp-100 | 1.0 |
| wbsp-200 | 2.0 |
Scroll the table sideways to see all columns
Datasheet
Product Sheet
Tell us your process — we'll match the media
Share your substrate and process and we will recommend the right abrasive and grade. Special-purpose media are developed to order.
